CLAM-2040 - Configuration

Product name Model name Q'ty Note
LC-MS/MS LCMS-8060 NX* 1 *Multiple LC-MS/MS systems are available.
About LC-MS/MS
Automated Sample Preparation Module CLAM-2040 1
System Controller CBM-40 1
Liquid Transfer Unit LC-40D XR/X3 2
Online Degassing Unit DGU-403 or 405 1
Autosampler SIL-40C XR/X3* 1
*When using the CLAM-2040 sample preparation
module, a SIL-40C XR/X3 must be included in
HPLC configuration.
Column Oven CTO-40C 1
Detector SPD-40 1
Flow Path Switching Valve FCV-S 1
Reservoir Tray   1
Mixer MR 20 μL 1
Touch Panel LCD   1
Handy Barcode Reader   1

About LC-MS/MS

LC-MS/MS can be selected from the following lineup.


TQ : LCMS-8060 NX, LCMS-8060, LCMS-8050, LCMS-8045, LCMS-8040.
are suitable for detecting substances such as drugs (TDM, etc.) present in blood and urine

  • Sensitivity order (from high&low): LCMS-8060NX > LCMS-8060 >LCMS-8050 >LCMS-8045 >LCMS-8040
  • LCMS-8040 and 8045.
  • LCMS-8050, LCMS-8060 and LCMS-8060 NX are suitable for detecting substances at very low concentrations such as hormones in blood.

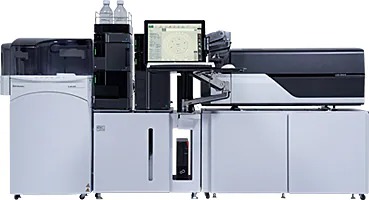

Q-TOF : LCMS-9030, LCMS-9050.

  • Resolution order (from high to low): LCMS-9050 > LCMS-9030

Please consult your local sales representative for more information on which system is best suited for your application.
