Section Around the Lens
Last update: 5 June 2024

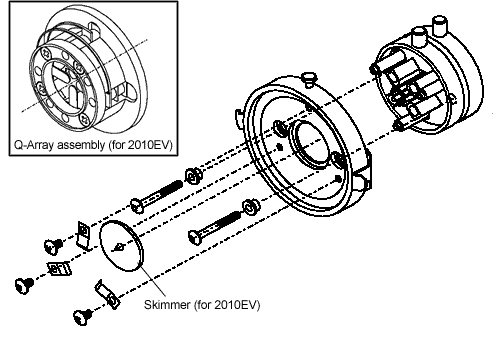

Section around the lens for LCMS-9030/8060/8050/8040/8030
Name | P/N | Appearance | Qty | Remarks | Applicable models |
---|---|---|---|---|---|
O-ring, 4DG50 |
036-12506
|
1 | On the Q-Array |
LCMS-2020 |
|
Skimmer |
225-06762
|
1 | Use this skimmer if the LCMS-2010 has been remodeled to a system equivalent to the LCMS-2010A. |
2010EV 2010A |
|
Skimmer |
225-05198-01
|
1 |
2010 |
||
Q-Array assembly |
225-06284-92
|
1 | Can be also used with the LCMS-2010. |
2010EV 2010A 2010 |
|
Q-Array assembly |
225-06284-91
|
1 |
2010 |
||
O-ring, AS568A-253 |
036-15552-53
|
1 | On the door |
LCMS-9030 LCMS-8060 LCMS-8050 LCMS-8040 LCMS-8030 |
