For example, PSL particles with a median diameter of 50nm and stainless balls with a diameter of 2mm can be measured by a single analyzer...

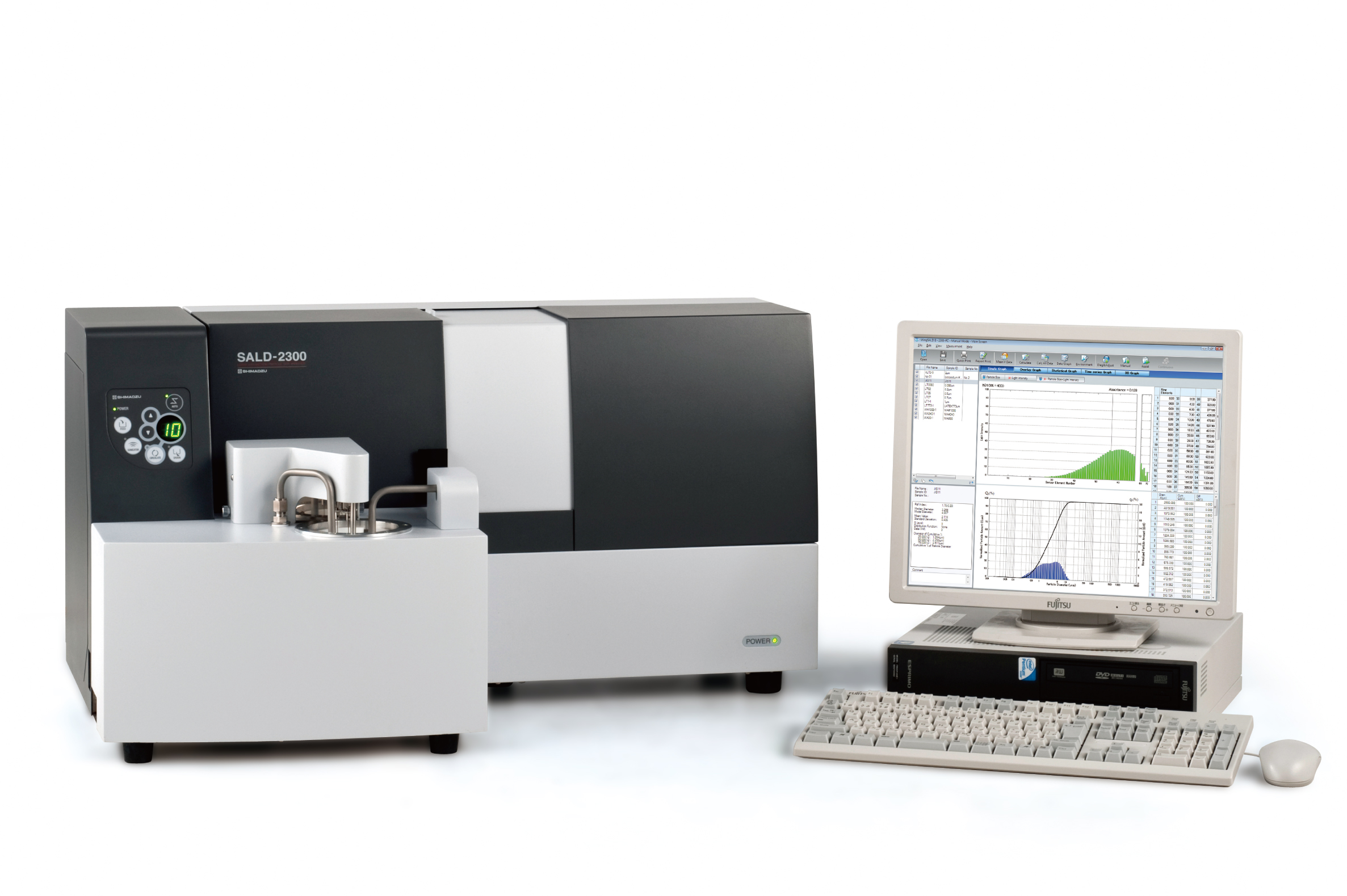

SALD-2300
Laser Diffraction Particle Size Analyzer
The new standard in the SALD series. While maintaining continuity and compatibility with respect to the data of the SALD2000/2100/2200, which were popular, widely distributed models, this instrument is equipped with many new functions useful for evaluating changes (dispersion, aggregation, dissolution) in particle size distribution relative to the concentration or time. It supports a particle concentration range from 0.1 ppm to 20% and can perform a series of measurements of 200 data points at 1 second minimum intervals.
Vlastnosti
-
Using the SALD-MS23 sampler, the measurement range is 17nm to 2500μm for wet measurement.

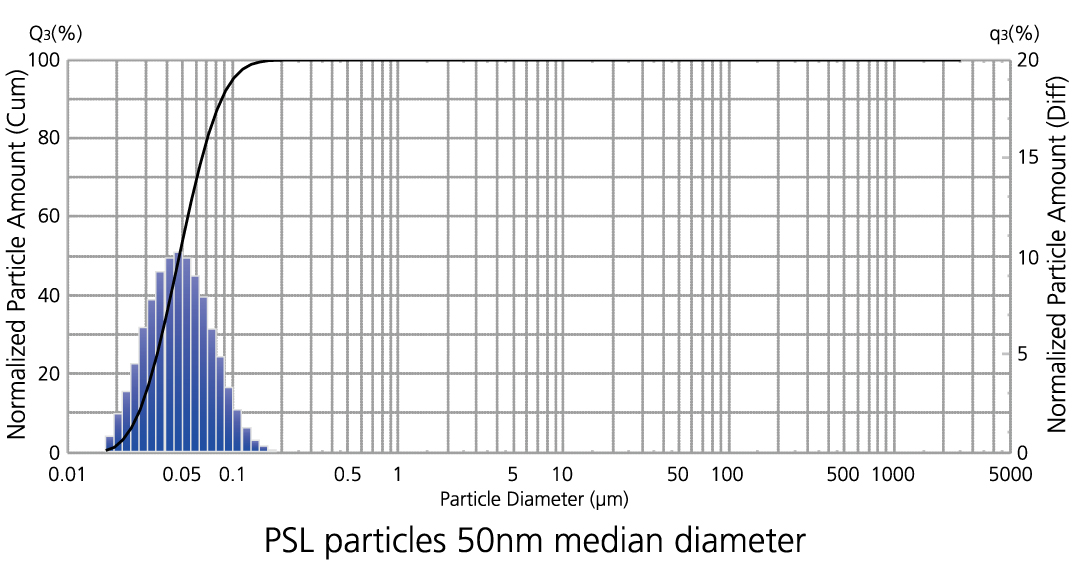

For example, PSL particles with a median diameter of 50nm and stainless balls with a diameter of 2mm can be measured by a single analyzer... -
By enabling measurement under wide particle concentration conditions (0.1ppm to 20%), changes in particle size distribution depending on particle concentration can be evaluated...
-

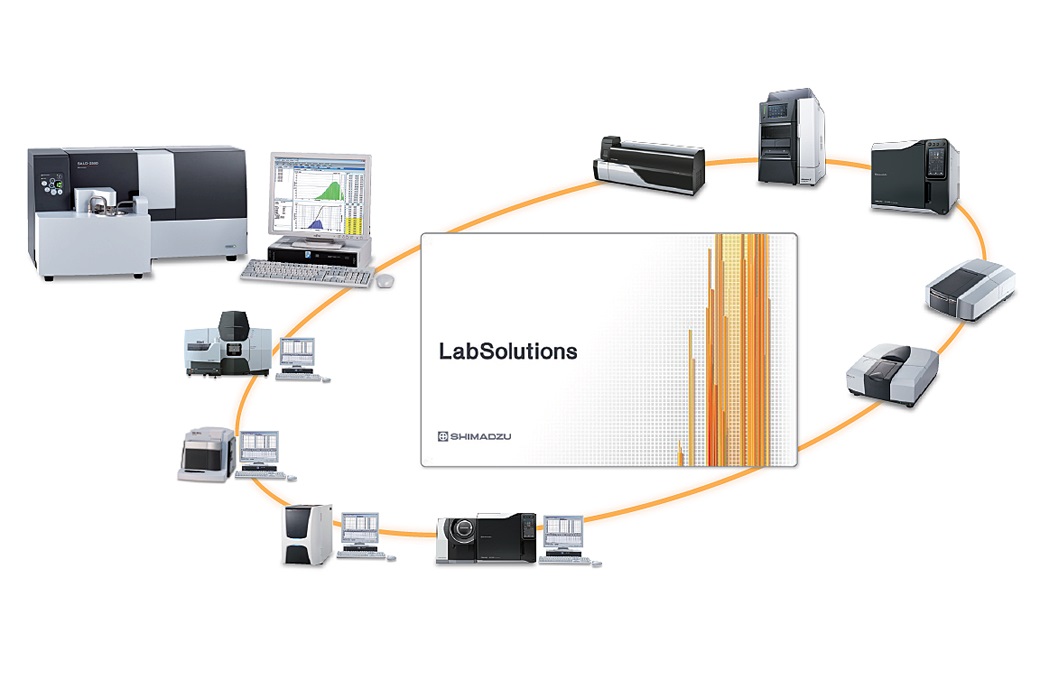

The SALD-2300 laser diffraction particle size analyzer is now compatible with data integrity requirements. Connecting LabSolutions SALD to the LabSolutions system, with its proven compatibility with ER/ES regulations, enables confident, reliable data management.
Videos
-
SALD-2300 High- Concentration Cell Unit
-
SALD-2300 Converting Wet system to Dry system
-
SALD-2300 Batch Cell Unit
-
SALD-2300 Cyclone Injection Type Dry Measurement Unit SALD-DS5
-
SALD-2300 Flow Cell Unit
-
SALD-2300 Laser Diffraction Particle Size Analyzer
