Metal Columns Connecting Parts

Add Bookmark

Conventional column connection solutions often don't work for metal columns due to different material properties and their larger outer diameter. The following solution can be used to connect 2 metal columns:

    Coulmn ID
    0.53 mm to 0.32 mm to 0.25 mm to
P/N Description 0.53 mm 0.32 mm 0.25 mm 0.32 mm 0.25 mm 0.25 mm
980-06597 UNION 1/16", .25mm bore, SS - - 1 - 1 1

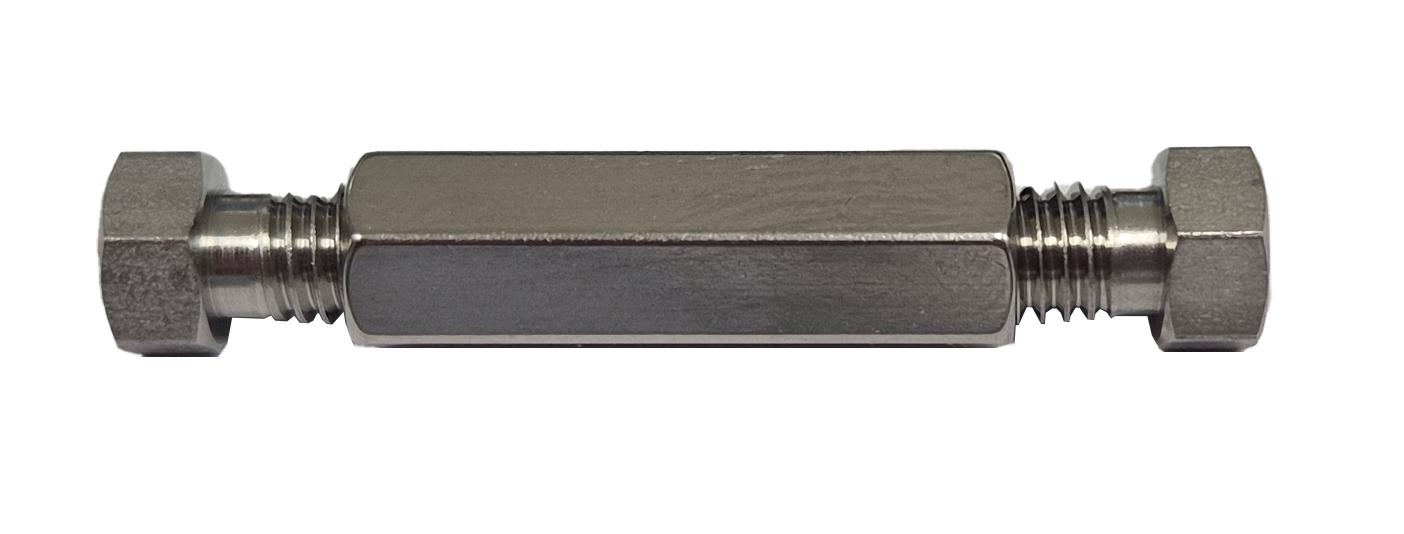

980-03168 Union 1/16" 5mm bore, SS 1 1 - 1 - -
980-03168
980-01428 FUSED SILICA ADAPTER 1/16", OD 0.4-0.5MM - - 1 - 1 2
980-01428

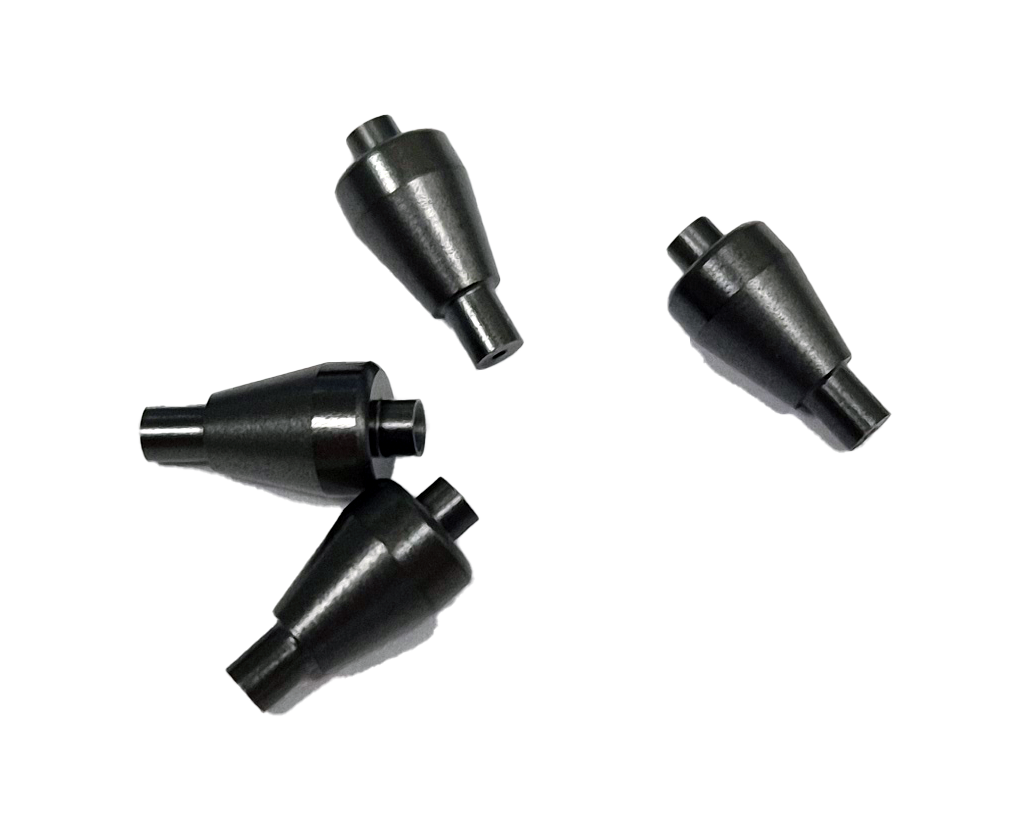

980-05636 FUSED SIL. ADAPTER 1/16", OD 0.5-0.8MM 2 2 1 2 1 -

How to read the table:
E.g. to connect 0.53 mm to 0.53 mm you have to order
1x   980-03168
2x   980-05636
